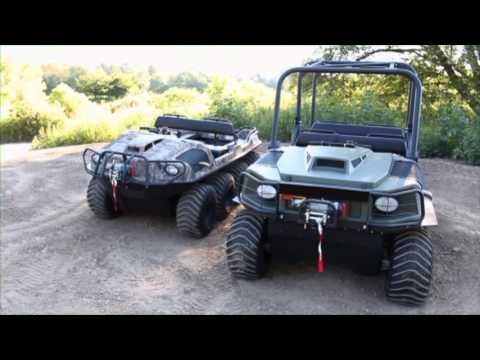

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
8x8 XTI

This 8-wheel-drive amphibious off-road vehicle is powered by a 748cc (45.6 cu. In.) liquid-cooled, V-twin, electronic fuel injected Kohler Aegis engine. The engine provides 30 hp (22.06 kW) and 47.7 lbs. ft. (64.6 Nm) of torque to the ADMIRAL two-speed transmission. It has a load capacity of up to 1,500 lb. / 680 kg on land or 1,000 lb. / 454 kg on water. Can transport up to 4 passengers on land and 2 on water and features a towing capacity of 2,000 lb. / 907 kg.
The 8x8 XTI is the ultimate all-terrain machine for those who require a durable, robust and dependable job site transporter. Designed for demanding commercial uses, the XTI has what people need to get their job done; large payload capacity, tubular steel frame, sealed axles and comfort for staff. The low operational weight, coupled with the efficient ADMIRAL steering transmission, makes this the ideal vehicle to transport people and equipment through the harshest terrain. With integrated frame mounting locations and universal mounting accessory, adding tools or equipment to the rear of the vehicle is convenient, simple and quick. Adding rubber tracks makes this the best-in-class vehicle when the task takes you off the beaten path.
  Colors
Black swatch  Red swatch  Tundra swatch  Yellow swatch  Infinity Camo swatch
  Features
  • Innovative triple-differential ADMIRAL transmission with independent steering brakes
  • Increased steering efficiency for more and constant power to the wheels
  • Electronic Fuel Injection provides:
    1. Increased fuel efficiency
    2. Reliable cold weather starting
    3. Improved high altitude performance
    4. On-board diagnostics
  • Large rear cargo capacity
  • Modular accessory designs for quick and easy change-over
  • Large engine compartment with quick detach body panels
  • Long wheel base for increased ride comfort over rough terrain
  • Wide 65” wheel base for superior stability
  • Oil-bath drive axles supported by taper roller bearings
  • Full skid plate for lower body protection
  • 8-wheel traction with low center of gravity for extra stability
  • 25" (63.5 cm) ARGO tires with proprietary tread design
  • Electronic ignition
  • Analogue Gauge (speedometer with digital odometer, tachometer with digital hour meter, fuel level, voltmeter, engine coolant temperature, warning lights; low oil pressure, parking brake on and glow plug on)
  • Multi-position handlebars, Left, Right or Center
  • Dual 12V outlets and Glove Boxes
  • Self-adjusting hydraulic brakes with vented discs
  • Low emissions
  • 3-year limited engine warranty



Specifications
Model
Kohler Aegis LH 775
Category Name
ATVs
Year
2015
Sale Type
New
Manufacturer
Argo
Engine
4 Cycle OHV V-Twin, petrol. 3 year engine warranty.
Horsepower
30 hp (23.1 kW)
Displacement
748cc
Brakes
Hydraulically activated disc brakes
Clutch
Continuously Variable Transmission (CVT) with heavy duty drive belt
Drive System
RS60HT heavy series roller chain connects 8 axles to the ADMIRAL transmission
Load Capacity On Land
1500 lb. / 680 kg
Towing Capacity
2000 lb. / 907 kg
Fuel Capacity
9.5 US gallons (36 litres) providing 8 - 10 hours of operation
Speed On Land
17 mph / 27 kph
Shipping Weight
1600 lb. / 726 kg
Ground Preassure
Tires 7 psi (48.3 kPa) or less Optional 15
Operating Conditions
All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
Cooling Air
Liquid cooled
Starting
Electric
Transmission
ADMIRAL triple differential steering transmission
Load Capacity On Water
1000 lb. / 454 kg
Speed On Water
3 mph / 5 kph
Tires
ARGO AT189 25x12.00-9 NHS
