Overview
8x8 700 HD

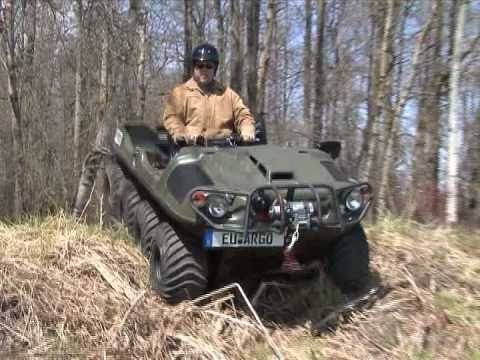

This 8-wheel drive amphibious off-road vehicle is powered by a 4-stroke OHV V-Twin liquid cooled 674cc, 24 hp (17 kW) Kohler Aegis LH 690 engine. It has a load capacity of up to 1150 lb. / 522 kg on land or 1000 lb. / 454 kg on water, can transport 6 passengers on land, 4 on water and features towing capacity of 1,800 lb. / 816 kg.

 8x8 700 HD Overview

The quiet and smooth liquid cooled engine in combination with the efficient ADMIRAL steering transmission make this machine a joy to drive. It is easy to control running at top speed on a gravel road yet it can haul big loads through extreme terrain and water.  Rubber tracks are available for better traction in soft terrain or snow.

  Colors
Black swatch  Blue swatch  Red swatch  Tundra swatch  Yellow swatch  Infinity Camo swatch
  Features

8x8 700 HD Features

  • Innovative triple-differential ADMIRAL transmission with independent steering brakes
  • Increased steering efficiency for more and constant power to the wheels
  • Optional high torque transmission for extreme terrain performance
  • Optional suspension seats
  • Large rear cargo capacity
  • Long wheel base for increased ride comfort over rough terrain
  • Large triple-sealed outer axle bearings
  • Front and rear bearing extensions
  • Full skid plate for lower body protection
  • 8-wheel traction with low centre of gravity for extra stability
  • 25" (635 mm) ARGO tires with proprietary tread design
  • Electronic ignition
  • Digital Gauge Cluster (speedometer, tachometer, odometer, voltmeter, hour meter, engine coolant temperature, low oil pressure and parking brake reminder lights)
  • Self-adjusting hydraulic brakes with vented discs
  • Low emissions
  • Three-year limited engine warranty



Specifications
Model
Kohler Aegis LH 690
Category Name
ATVs
Year
2015
Sale Type
New
Manufacturer
Argo
Engine
4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year engine warranty
Horsepower
24 (17 kW)
Displacement
674cc
Brakes
Hydraulic
Load Capacity On Land
1150 lb. / 521 kg total
Towing Capacity
1800 lb. / 816 kg
Fuel Capacity
7.1 Us gallons (27 litres) See-through polyethylene fuel tank. 8 hours of operation.
Speed On Land
20 mph / 32 km per hour
Shipping Weight
1250 lb. / 567 kg
Ground Preassure
2.1 psi (14.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks
Ground Clearance Tires
9.5'' (240 mm)
Ground Clearance Tracks
10.5'' (265 mm)
Operating Conditions
All weather, all terrain, -40C to +40C
Cooling Air
Liquid Cooled
Starting
Electric
Transmission
ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse.
Load Capacity On Water
1000 lb. / 454 kg total
Speed On Water
3 mph / 5 km per hour
